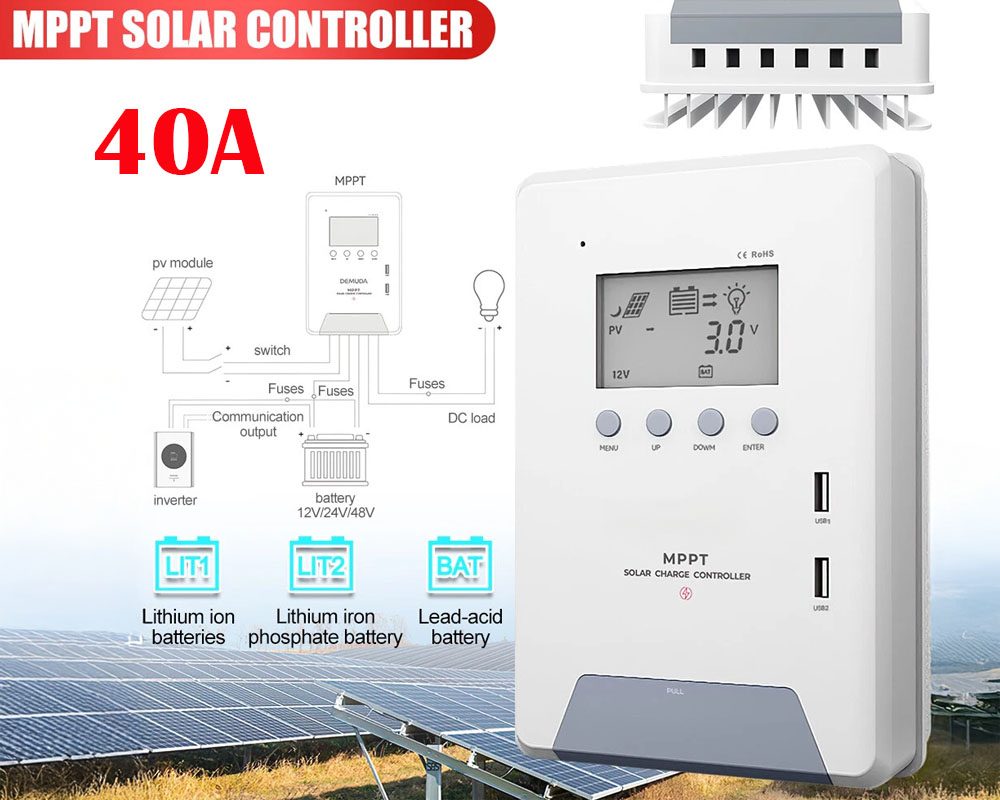

MPPT Solar Controller 40A

MPPT Solar Controller 40A 12V-24V Auto
12 Month Warranty

12V/24V 40A MPPT Solar Charge Controller with Dual USB & LCD Display | High-Efficiency

Optimise your solar power system’s performance with this high-performance 12V/24V MPPT Solar Charge Controller. Built with advanced 32-bit industrial-grade computing technology and an intelligent MPPT control algorithm, this controller rapidly tracks the maximum power point in real time to maximise solar panel efficiency – ensuring you get the most out of your photovoltaic array in any environment.

The intelligent temperature control circuit of the MPPT Solar Controller can effectively protect the machine's normal operation in high-temperature environments.

Features:
*Solar Panel 12V/24V 40A
*Built-in industrial controller.
*One-key setting, auto memory function. digital display,
*There are Built-in short-circuit protections, open-circuit protections, reverse protections, overload protections
*reverse current protections, and low heat productions.
*With double USB ports for charging
*The Regulator is suitable for lead acid batteries, Ternary aluminium battery, Lithium iron phosphate battery: OPEN, AGM, GEL, etc.

Specifications:
Colour: White
Model: DM140
Material: ABS
Rated Charge Current: 40A
Rated Discharge Current: 10A
USB Output: 5V, 3A Max.
Photovoltaic Max Open Circuit Voltage: 40A: 100V
Photovoltaic Max Input Power: 40A: 550W/12V, 1100W/24V
MPPT Tracking Efficiency: 99%
Conversion Efficiency: 98%
System Voltage: 40A: 12V/24V Automatic
Item size: 40A: 217 * 148 * 65mm
Package size: 40A: 244 * 174 * 95mm
Package weight: 40A: 1500g

Packing Includes:
1 x Solar Charge Controller
1 x User Manual
