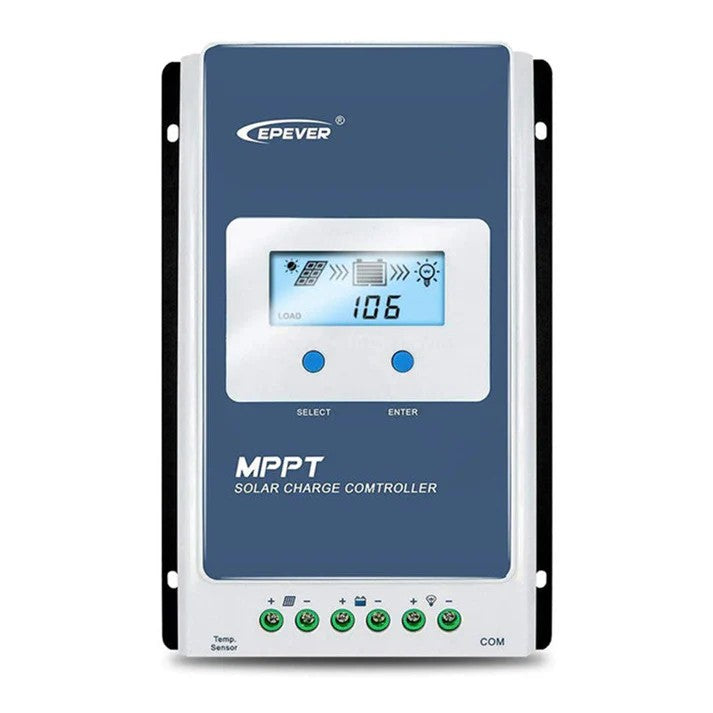

Tracer1210AN EPEVER 10A Solar Controller MPPT Solar Panel Charge Controller

EPEVER 30A Solar Charge Controller MPPT Solar Panel Charge Controller
12 Month Warranty

The EPEVER Tracer AN series solar charge controller adopts MPPT (Maximum Power Point Tracking) technology. In any situation, it can track the maximum power point (MPP) of the solar panel/array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared to a PWM charge controller.

Features

*Advanced MPPT control technology
*High tracking efficiency no less than 99.5%
*Maximum conversion efficiency of 98%
*Common negative design
*Multiple load work modes
*RS485 communication

Technical Specification

*Nominal System Voltage 12/24V Auto
*Battery Input Voltage Range 8V ~ 32V
*Max Charge/ Discharge Current 10A
*Max. PV Open Circuit Voltage 100V (At minimum operating environment temperature)
*Max. PV Open Circuit Voltage 92V (At 25 Deg C operating environment temperature)
*MPPT Voltage Range +2V ~ 72V
*Max Rated Charging Power (10A), 130W (12V), 260W (24V)
*Max. PV Array Input Power 390W (12V), 780W (24V)
*Wiring Connections, Solar +/-, Battery +/-, Power Output +/-, Temp Sensor, COM RJ45
*Working Environment Temperature Range – 25 to +45 Deg C
*Humidity Range <95%
*Enclosure IP30

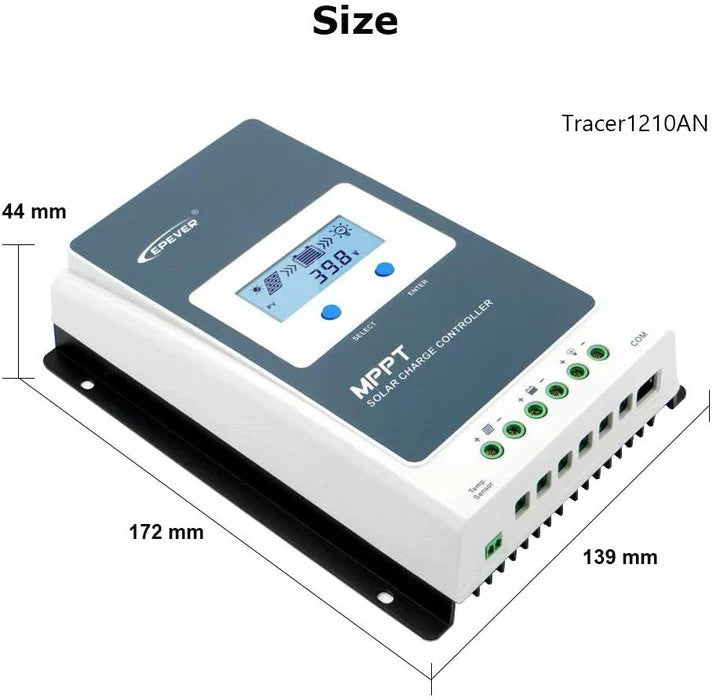

*Dimensions 172mm x 139mm x 44mm
*Power Terminals 12AWH (4mm sq)
*Weight 0.6Kg

1 x MPPT Tracer 2210 Solar Charging Controller
1 x User Manual
