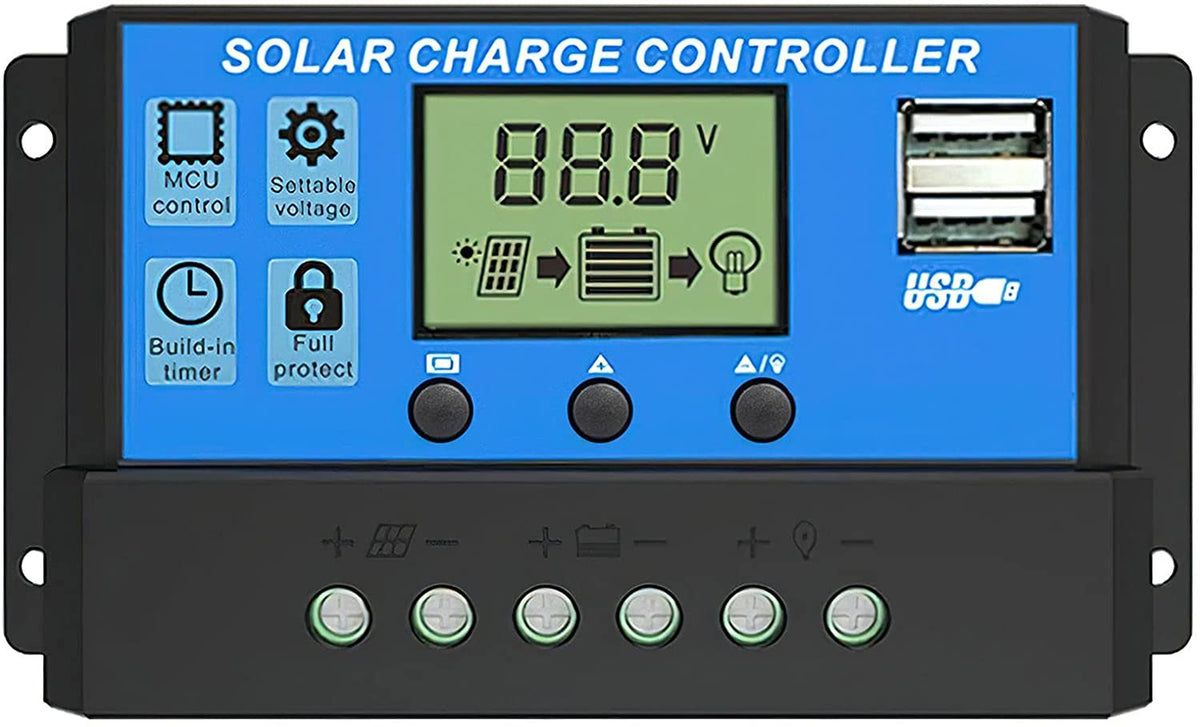

Solar Panel Charge Controller & Regulator 12V/24V auto dual USB 30A Battery PWM

  • $20.00

From Great Range Products
12 Month warranty
New 30A Solar charge controller with big LCD display , intelligent charge technology

With USB charge caution

With DC function

* Industrial-grade microprocessor control
* 12V and 24V can be adaptive
* With the charging over current protection function
* The controller will automatic reduce the charger current
* With the solar reverse polarity protection
* With the over temperature protection
* With DC power supply function
* Can Be connected DC energy-saving lamps
* Wall hanging case
* Application for Off-grid solar power system

This is a Settable Charge Controllers:
* Floating charge Voltage(HVD 13.3V-15V)
* Recovery after under Voltage(LVD 11V-13.5V)
* Under Voltage protection (RVD 9V-12.3V)
* Load Mode(24hours,1-23hours,0hour)
* Battery Option (GEL,LEAD-ACID,FLOODED)

* Charge Control Mode: PWM
* USB : 5V 3A
* Rated Current : 30A/24V
* Rated voltage: 12V/24V Automatic Identification
* Max. PV Input Power:
* 30A: 390W (12V) 780W (24V)
* Charge and discharge voltage drop: 0.2V|<0.1V
* Dimension: 138 x 70 × 41.5 mm
* Net Weight: 320g

Package Includes:
1 x 30A Solar Controller USB
1 x Manual
